Product Name | Stardard/heavy duty/rock bucket |
---|---|
Machine Model | All the famous brand |
Material | Q345B/NM360/HARDOX500 |
Capacity | 0.1-12m3 |
Weight | 200-12000kgs |
Colour | Customized |
Environment | Rock,clay,sand,soil,gravel |
2.Detailed Images
Bucket material
Bucket capacity
Bucket capacity | Excavators |
---|---|
0.1-0.3m3 | equipped for 5-6±tons |
0.5-0.6m3 | equipped for 14±tons excavators |
0.9-1.1m3 | equipped for 21±tons excavators |
1.1-1.2m3 | equipped for 24±tons excavators |
1.2-1.4m3 | equipped for 29±tons excavators |
1.7-1.9m3 | equipped for 36±tons excavators |
2.1-2.6m3 | equipped for 46±tons excavators |
Employs high grade protected by Hardox Welding methods: mixed gas arc welding (MAG)
(NM400. Bisalloy 80 etc)wear plates, and carbon dioxide welding (FCAW).
making the bucket 2-3 times stronger and
abrasion resistant than mild steel.
3.Our Factory
We can design and manufacture various bucket for any brand, even can scientifically solve the problem of stress according to the difference working enviroment or requirements from customers, choose the selected material, and finish the design by CAD, also obtain the integrated quality controlling procedure for welding, so that the hardness of the structure, using capability and quality can be ensured.
Suitable machinery: From 1 T to 120 T, Caterpillar, Kobelco, Hitachi, Hyundai, Komatsu, JCB and other brand. The specification covers from 0.1m3 to 12m3 and so on.
1.Bucket capacity:0~15 m3.
2.Teeth option: teeth or any other brand teeth just as per your actual demand.
3.Exacavator bucket pins and bushing are hardened.
4.Welded with mixed gas between argon and carbon dioxide. Argon content:80%. Carbon dioxide content:20%.
5.Warranty:12 months.
We choose wer-resistant selection of quality, high-strength steel plate and high-strength anti-Rally wire, welding equipment, professionals carefully weldsed toghter, the surface jet mill with strong internal and external appearance.
According to specital ends of customers, we provide different types of buckets, from digging fighting shape, texture, thinkness, and other aspects of the design characteristics.
Type:
Standard excavator bucket:
General purpose, it is intended to be useful for light work, such as digging clay and loading sand, soil, gravel and so on. The capacity is 0.4~1.38m3.can be manufactured by order.
The bucket materials was made in superior quality, wear-resistant low alloy steel plate, and welding, best plasticity, toughness, crack resistance and so on.

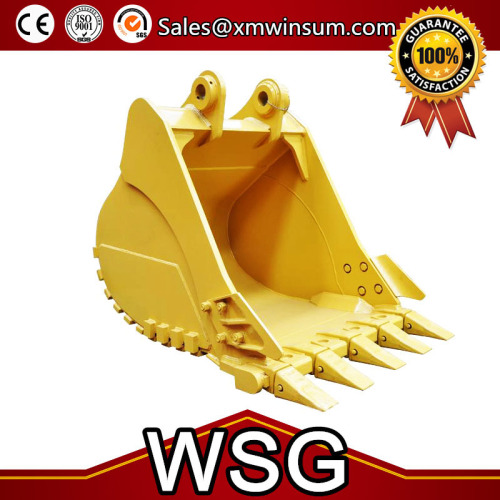

Rock Bucket:
Strengthen the high stress specially, increase the materials thickness for wear and tear, and add stiffener elements in the bottom.
Used for diggering the clay with tough stone,secondary tough stone, rocks, and loading stone, explosive ore like such heavy work.
The capacity is 1~1.68m3.can be manufactured by order. The bucket materials was made in superior quality, wear-resistant low alloy steel plate, and welding, best plasticity, toughness, crack resistance and so on.
Certificahtion
4. Our Catalogue
Fit for brand | We have the excavator bucket and rippers used for follow types, and have the ability to make the buckets according to the samples and drawings: | ||||||||
Hitachi | EX60 | EX200 | EX220 | EX230 | EX240 | EX300 | EX330 | EX360 | EX450 |
EX850 | EX870 | ||||||||
Komatsu | PC60 | PC200 | PC220 | PC230 | PC300 | PC360 | PC400 | PC600 | PC700 |
PC800 | PC450 | ||||||||
Volvo | EC210 | EC240 | EC290 | EC360 | EC460 | EC700 | |||
Hyundai | R55 | R130 | R190 | R200 | R210 | R220 | R225 | R225-7 | R290 |
Daewoo | DH220 | DH258 | DH280 | DH300 | DH370 | DH420 | DH500 | ||
Shinko | SK200 | SK220 | SK230 | SK250 | SK300 | SK330 | SK450 | SK460 | |
Kato | HD Takeuchi bucket | ||||||||
Caterpillar | 320 five teeth digging bucket; 320 seven teeth digging earthwork bucket; 320 digging rock bucket; 320 six teeth; 325; 330; 385 |
||||||||
Sumitomo | SH200 | SH280 | SH300 | SH330 |
